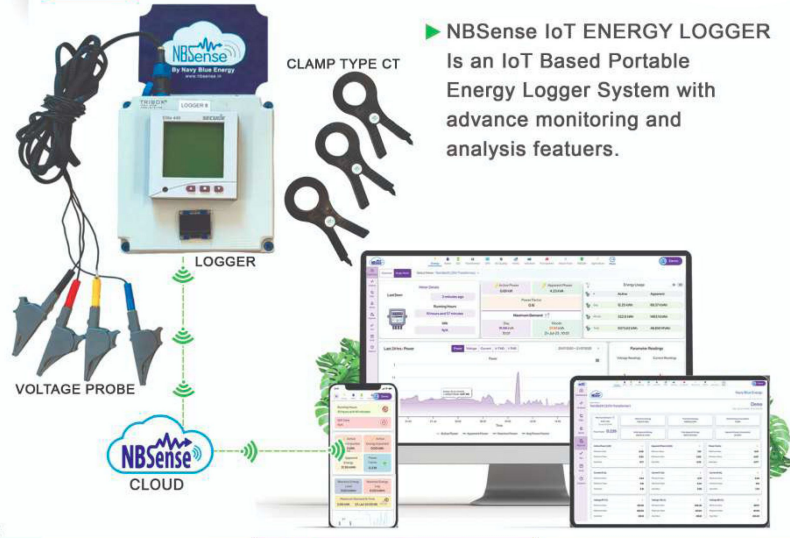

PORTABLE IOT ENERGY LOGGER
Software Features
Access to smart Web-Dashboard
Analysis- Customized Selection of Time period
Wireless data transmission and can access from Anywhere anytime (loT based)
Data can export in XLS, CSV, PDF, JPG & PNG Format
Instantaneous, Daily, Monthly, Yearly Data Trends
Comparison- consumption wise quick comparisons
Power (active, Apparent, Reactive), Current Voltage (Line and Phase), Energy, Demand
Alarm Setup- Can set alarm of any parameter. with Web notifications, Email and SMS
Power Quality Monitoring (PF, THD)
M&V Tool- For quick count of savings
Product Hardware Specifications
Communication Protocol-RS485, Ethernet
Power Supply: 240 V AC Internal OR 12 V DC (External SMPS)
Network- GSM-2G/4G, Wi-Fi, LAN
Dimensions: 180X180X100 mm
Ingress protection class- IP 67
Certification: CE, NABL
Data Storage: Device-16 GB, Cloud- Unlimited
Weight-350 grams (1 kg with СТ)
Data Frequency Range: 30 Sec to 1 Min
Power consumption: 5 W
Operating Temp. Range: -10 to +60 C
